LITHVOLT / HYBRID INVERTERS

One platform. Seven system paths.

Select by PV string voltage, battery bus, continuous load, expansion plan and installation environment—not by headline watts alone.

START A PROJECT ↗

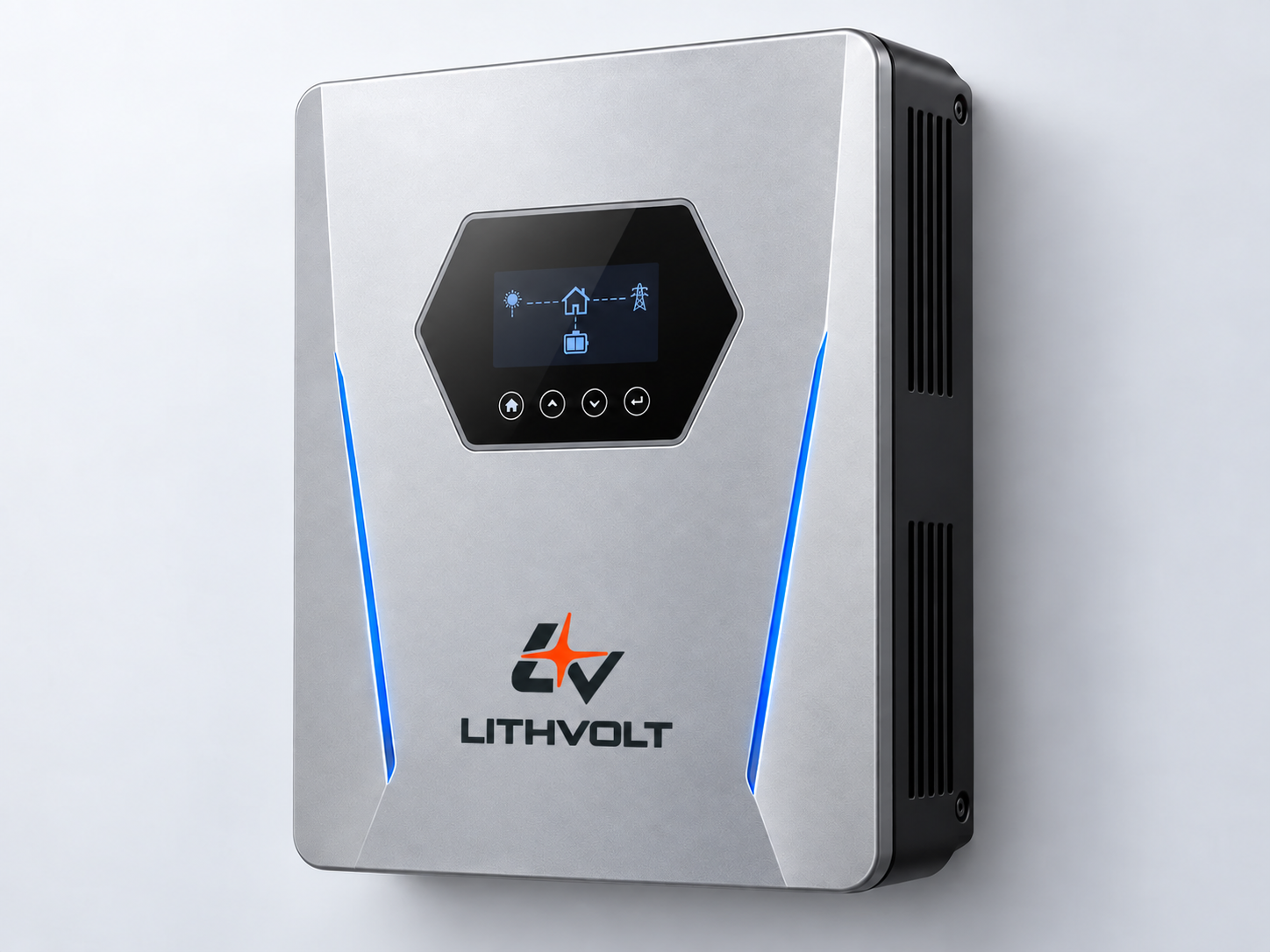

LithVolt ED Essential
ED Essential · IP21
High-frequency inverter

Lighter, efficient and usually more economical. Best for solar, home backup and general electronic loads.

Low-frequency inverter

Heavier transformer design with stronger surge tolerance. Best for motors, pumps, compressors and other large inductive loads, or projects with a smaller PV array.

How the series differ

ED Essential

IP21Warranty: 1 year

Refined value series: compact, light and efficient for price-sensitive residential backup and solar self-consumption.

Best-fit logic

  1. 1. Add every simultaneous AC load and its starting surge.
  2. 2. Select the battery voltage and BMS current above inverter demand.
  3. 3. Build PV strings inside both MPPT operating and absolute voltage limits.
  4. 4. Confirm local AC voltage, grid code, IP rating, parallel function and certificates before ordering.

ED Essential

LV-ED-3024

IP211 year
Rated output
3.0 kW
Battery bus
24 V
MPPT range
30–500 VDC
Max PV array
3.0 kW
Max charge
100 A
Reference EXW
¥1,190

ED Essential

LV-ED-4024

IP211 year
Rated output
4.0 kW
Battery bus
24 V
MPPT range
60–500 VDC
Max PV array
5.0 kW
Max charge
120 A
Reference EXW
¥1,670

ED Essential

LV-ED-6248

IP211 year
Rated output
6.2 kW
Battery bus
48 V
MPPT range
60–500 VDC
Max PV array
6.2 kW
Max charge
120 A
Reference EXW
¥1,910

ED Essential

LV-ED-1104

IP211 year
Rated output
11.0 kW
Battery bus
48 V
MPPT range
90–500 VDC
Max PV array
2 × 5.5 kW
Max charge
150 A
Reference EXW
¥3,470

Reference prices are CNY, based on one-unit EXW supply and rounded after an approximately 20% commercial uplift. Tax, freight, grid-code options and project documentation are excluded. Final configuration and price follow the signed quotation.

Protection, warranty, CE certificate scope, grid code and split-phase configuration are model- and market-specific. Confirm them in the final signed quotation and datasheet.
