48V 24Ah
Standard- Voltage
- 48 V
- Capacity
- 24 Ah
- Nominal energy
- 1.15 kWh
POWER BATTERIES / TWO-WHEELER BATTERIES
One product family. Eighteen selectable configurations.
Choose the electrical platform first, then capacity and enclosure. Final compatibility depends on physical dimensions, connector, communication protocol, charger and vehicle controller.
REQUEST MATCHING CHECK ↗
Two-wheeler batteries
18 listed configurations
Nominal energy is calculated as nominal voltage × rated capacity. It is not a guaranteed usable-energy or driving-range figure.

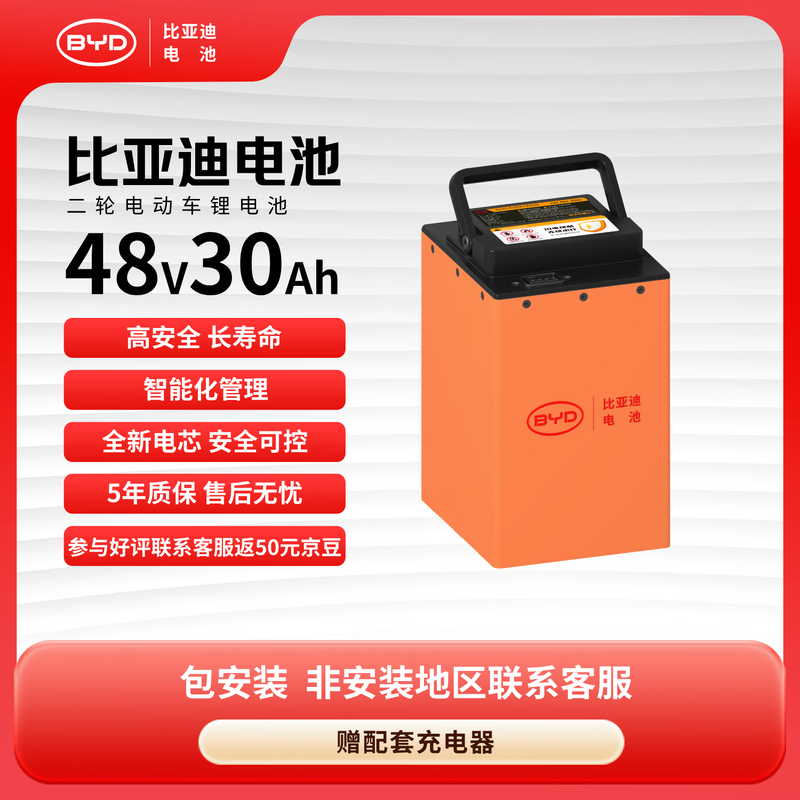

48V 30Ah
Standard- Voltage
- 48 V
- Capacity
- 30 Ah
- Nominal energy
- 1.44 kWh

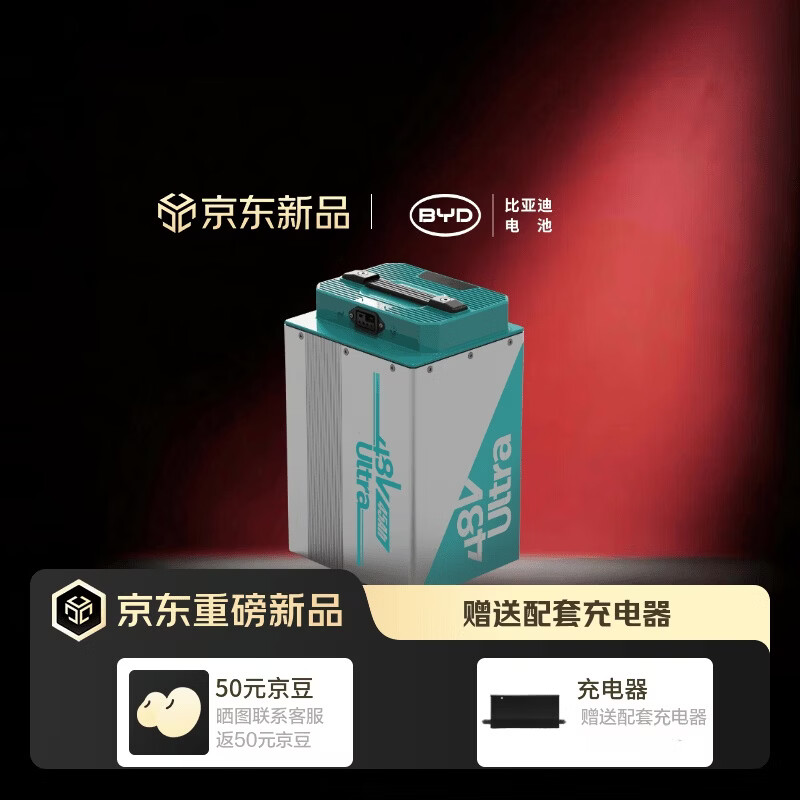

48V 45Ah
Standard- Voltage
- 48 V
- Capacity
- 45 Ah
- Nominal energy
- 2.16 kWh
64V 24Ah
Standard- Voltage
- 64 V
- Capacity
- 24 Ah
- Nominal energy
- 1.54 kWh

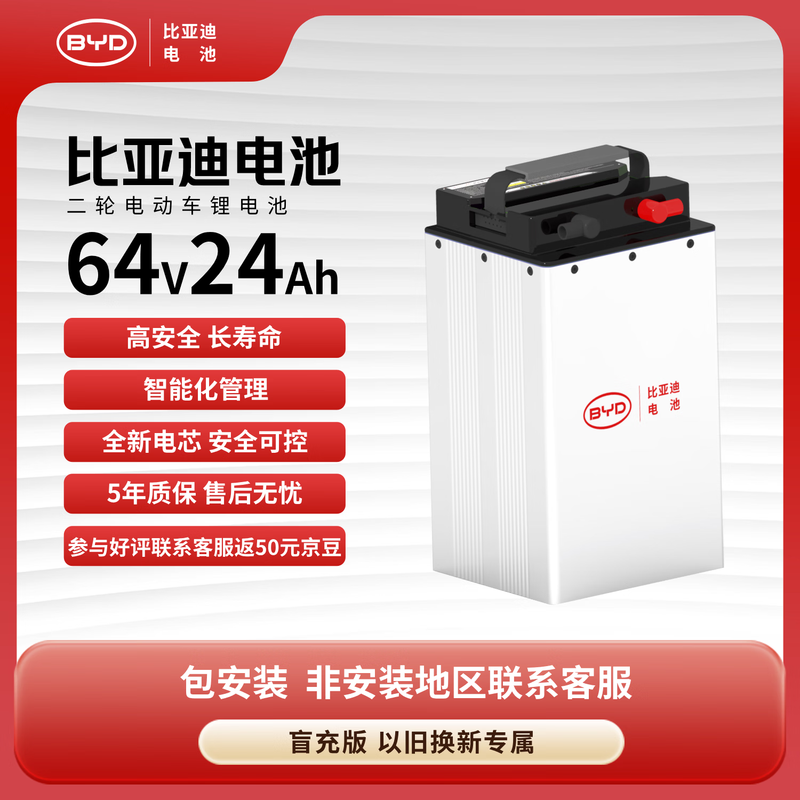

64V 24Ah
Blind-charge version- Voltage
- 64 V
- Capacity
- 24 Ah
- Nominal energy
- 1.54 kWh

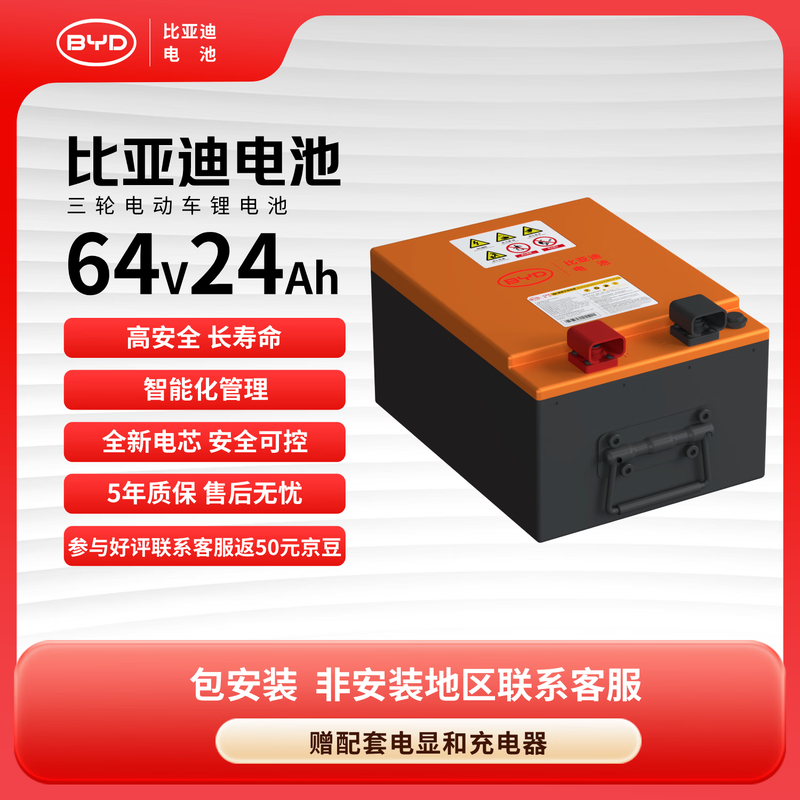

64V 24Ah
Bluetooth version- Voltage
- 64 V
- Capacity
- 24 Ah
- Nominal energy
- 1.54 kWh

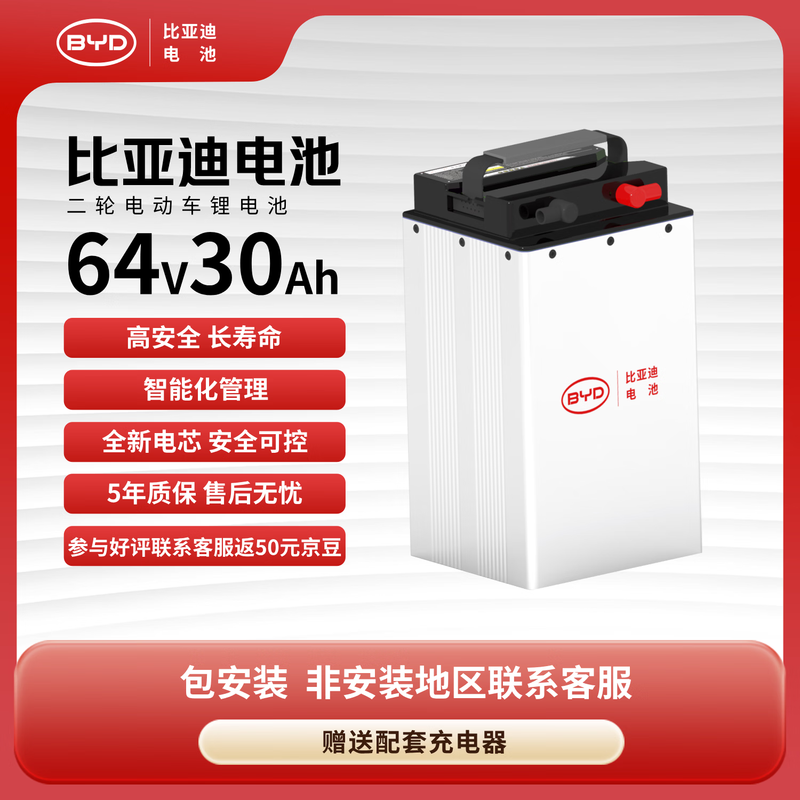

64V 30Ah
Standard- Voltage
- 64 V
- Capacity
- 30 Ah
- Nominal energy
- 1.92 kWh

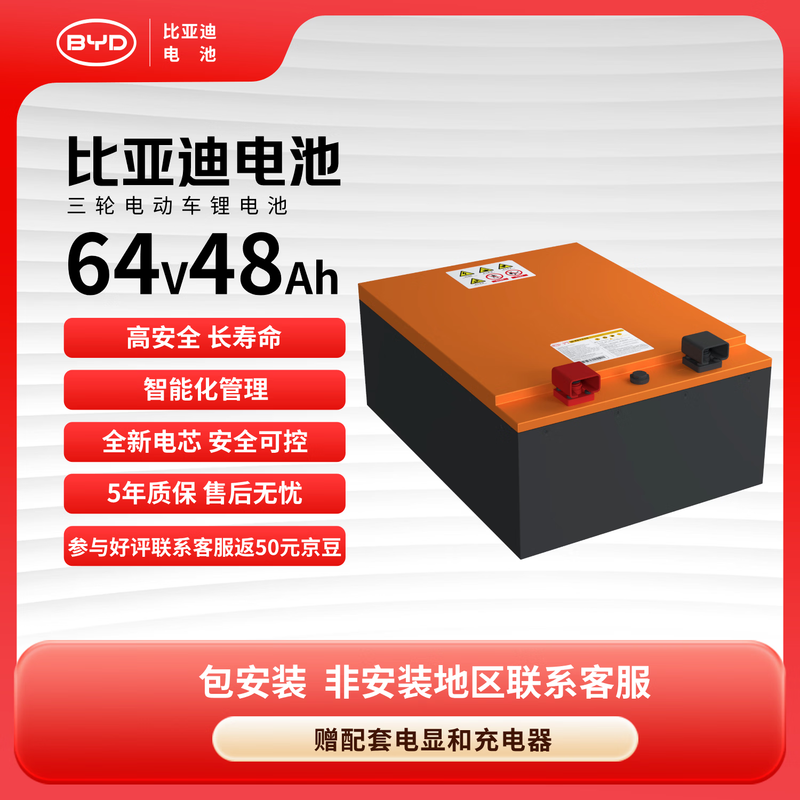

64V 48Ah
Bluetooth version- Voltage
- 64 V
- Capacity
- 48 Ah
- Nominal energy
- 3.07 kWh

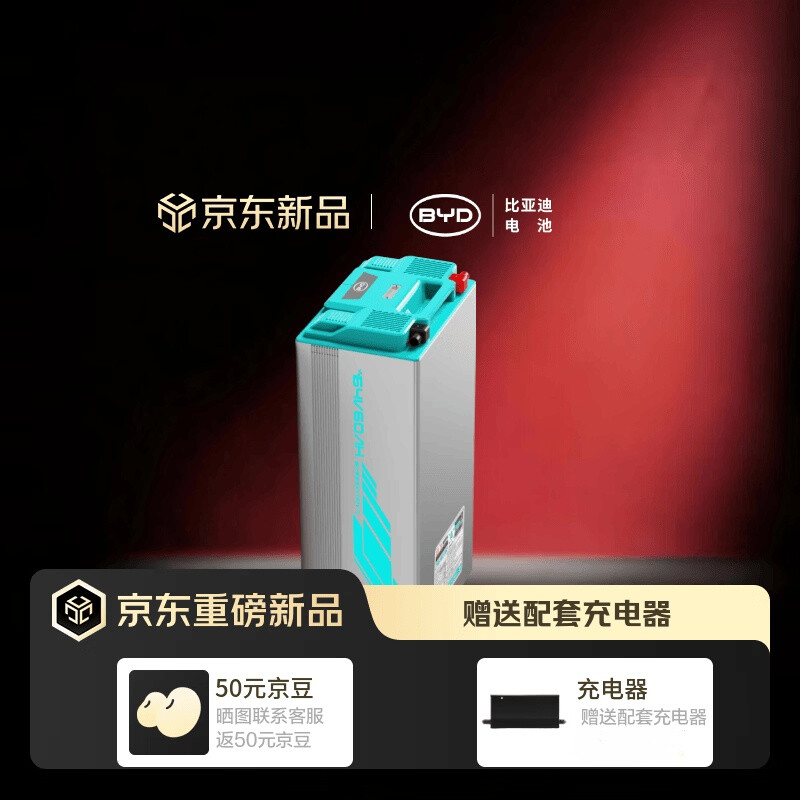

64V 60Ah
Standard- Voltage
- 64 V
- Capacity
- 60 Ah
- Nominal energy
- 3.84 kWh

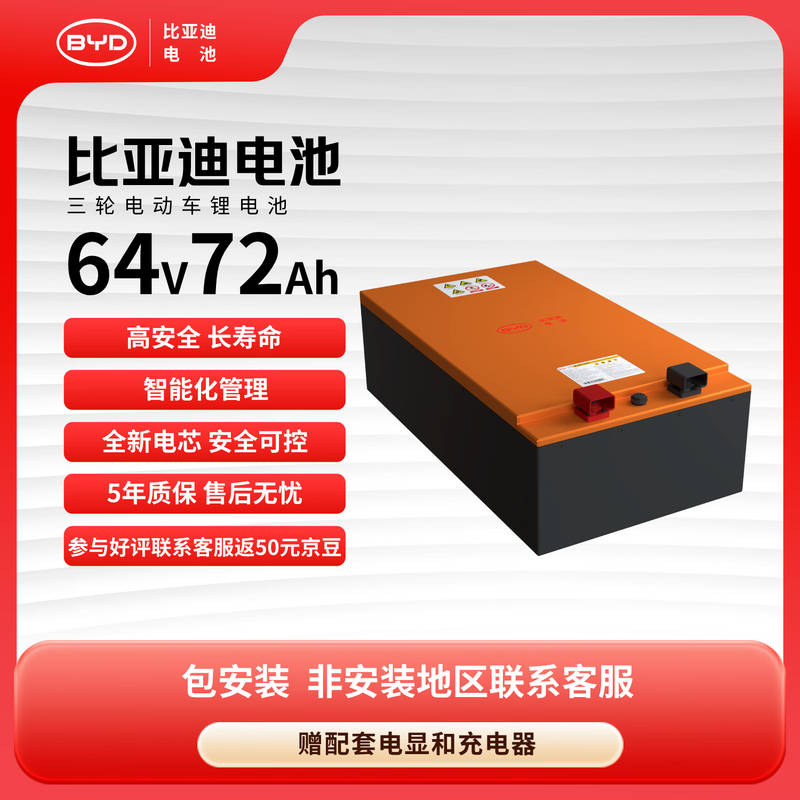

64V 72Ah
Bluetooth version- Voltage
- 64 V
- Capacity
- 72 Ah
- Nominal energy
- 4.61 kWh
76V 24Ah
Standard- Voltage
- 76 V
- Capacity
- 24 Ah
- Nominal energy
- 1.82 kWh
76V 24Ah
U Series- Voltage
- 76 V
- Capacity
- 24 Ah
- Nominal energy
- 1.82 kWh
76V 30Ah
Standard- Voltage
- 76 V
- Capacity
- 30 Ah
- Nominal energy
- 2.28 kWh

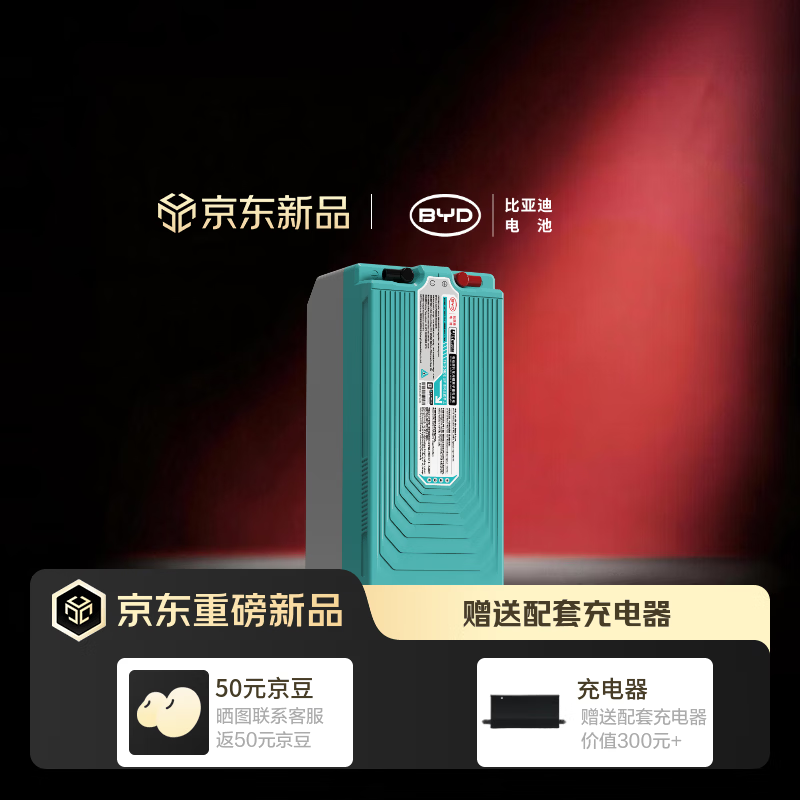

76V 30Ah
U Series- Voltage
- 76 V
- Capacity
- 30 Ah
- Nominal energy
- 2.28 kWh

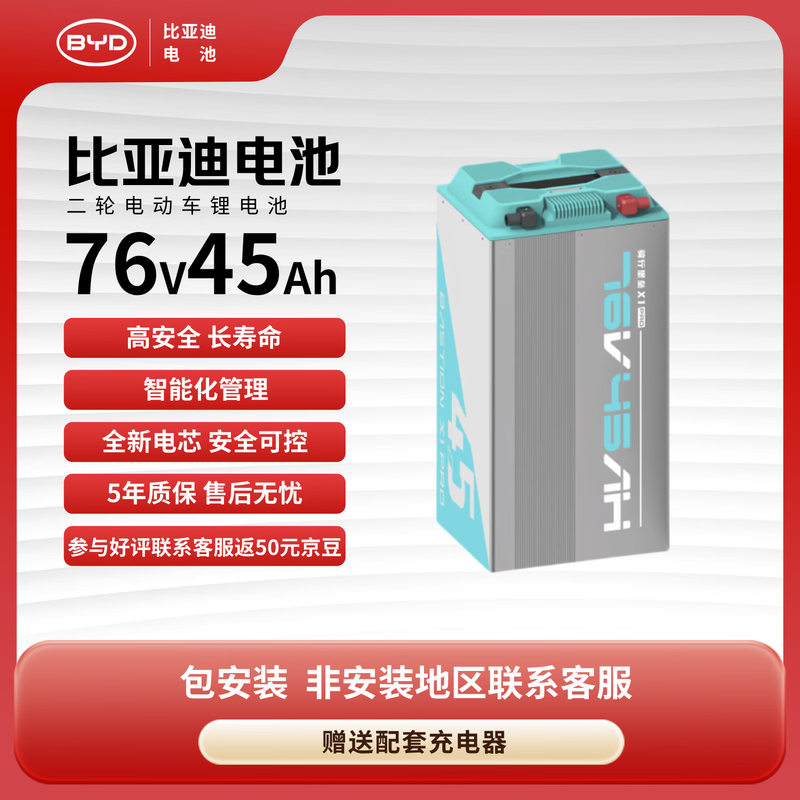

76V 45Ah
Standard- Voltage
- 76 V
- Capacity
- 45 Ah
- Nominal energy
- 3.42 kWh

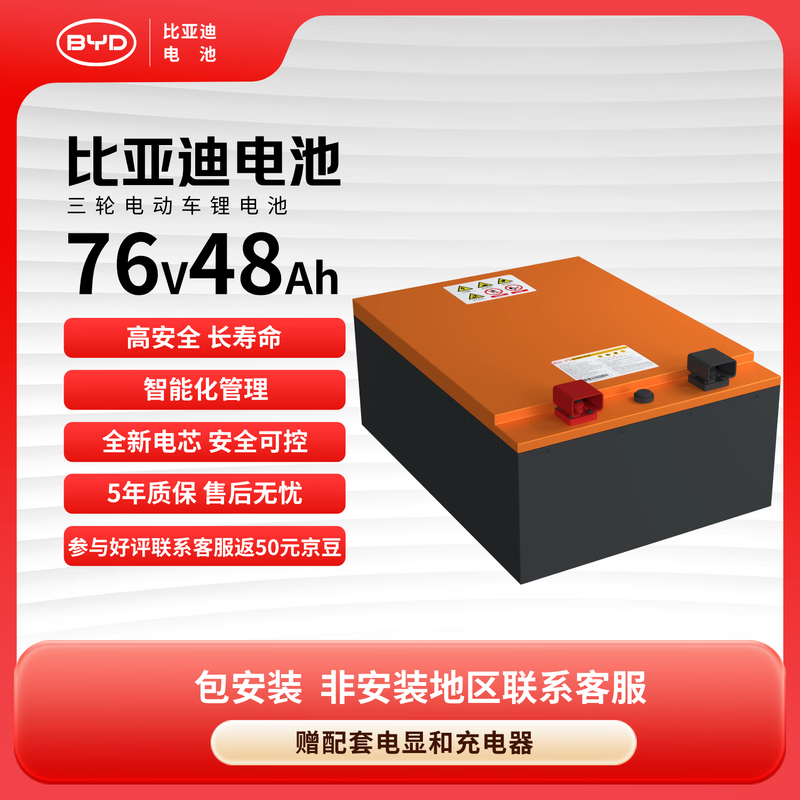

76V 48Ah
Bluetooth version- Voltage
- 76 V
- Capacity
- 48 Ah
- Nominal energy
- 3.65 kWh

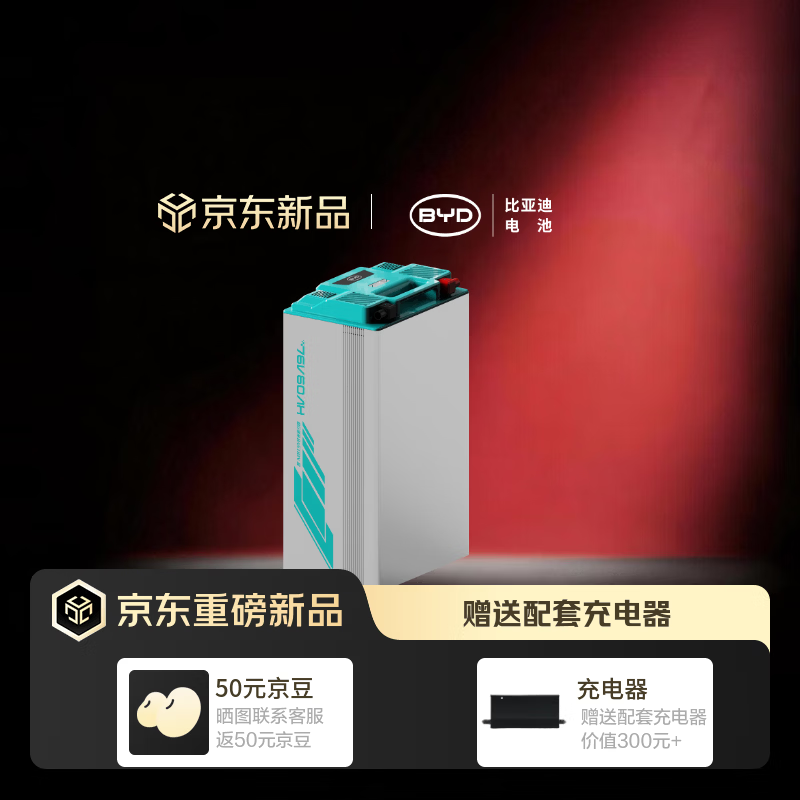

76V 60Ah
Standard- Voltage
- 76 V
- Capacity
- 60 Ah
- Nominal energy
- 4.56 kWh

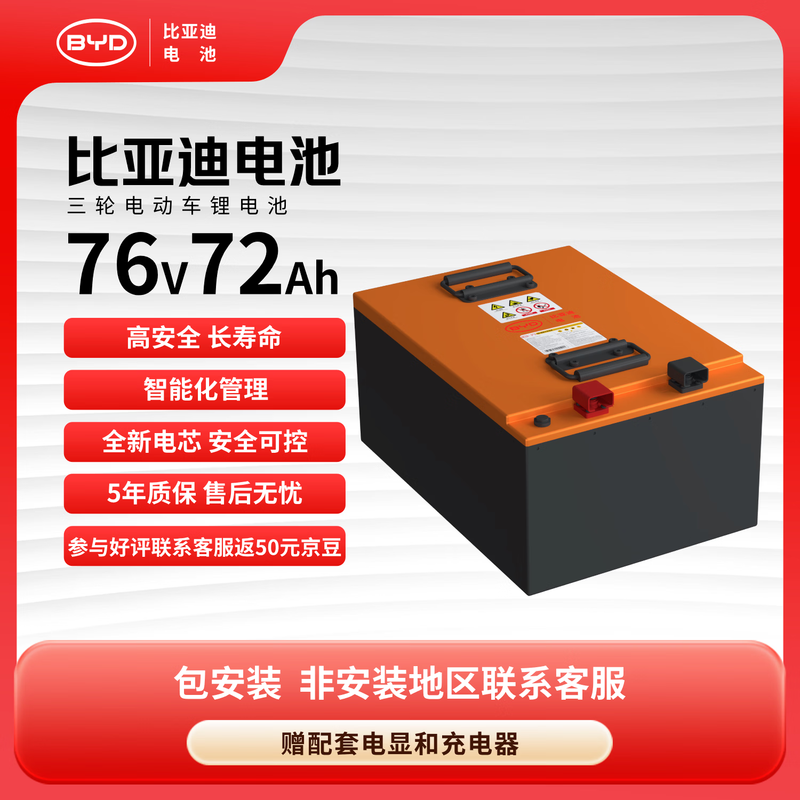

76V 72Ah
Bluetooth version- Voltage
- 76 V
- Capacity
- 72 Ah
- Nominal energy
- 5.47 kWh
01 / MATCHING
Before you order
- 1Confirm the vehicle nominal voltage and controller voltage window.
- 2Measure the battery bay and verify connector polarity and pinout.
- 3Confirm BMS communication, charger protocol and required charge current.
- 4Check continuous/peak discharge current against motor and controller demand.
02 / ENGINEERING

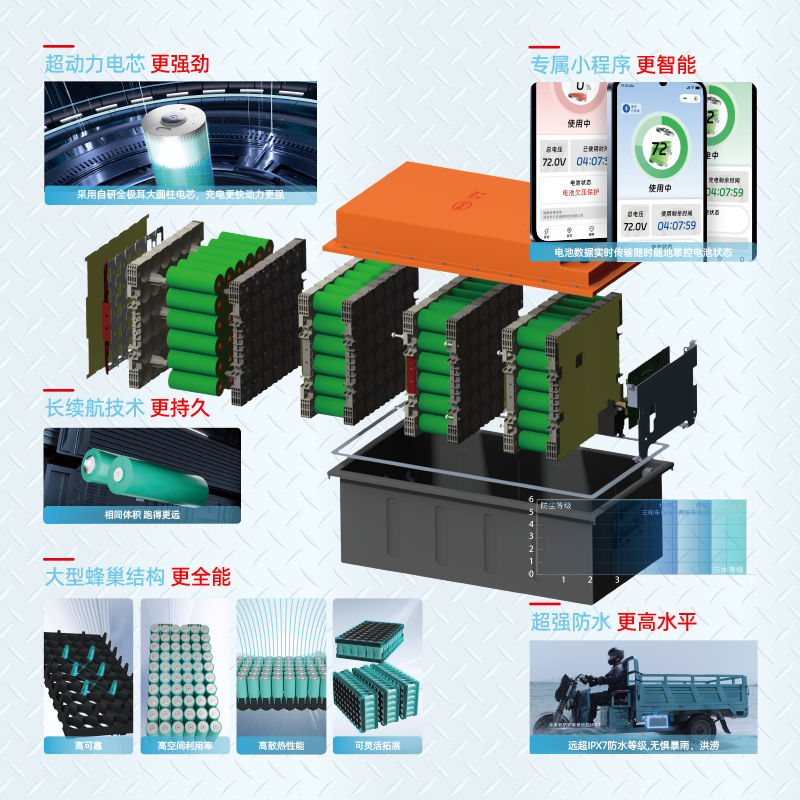

Product engineering
- Cylindrical-cell pack architecture
- Battery management and optional smart monitoring
- Vehicle-oriented enclosure and modular pack layout
- Configuration-dependent low-temperature charging and water protection
03 / SAFETY GATE
Compatibility comes before capacity
A matching voltage is not enough. Some vehicle brands use proprietary connectors or communication handshakes. Do not install or charge the pack until the vehicle, charger and battery interfaces have been confirmed in writing.
Images and listed configurations are organized from the supplied product package. Certification, IP rating, warranty, charger inclusion, smart functions and transport documents are model- and destination-specific and must be confirmed on the signed datasheet and quotation.
04 / TEST EVIDENCE
Model-specific reports, not blanket claims.
Review the tested model, specification, standard and issuing laboratory before using a report for transport, market access or procurement. Original PDFs are provided unmodified.
UN 38.3 test report
EMA585330219054061064 (SL6496)
64 V · 96 Ah · 6.144 kWh
Passed the eight UN 38.3 test items for the identified SL6496 battery pack and its component cells.
- Report
- 1125001748-1
- Issued
- 2025-06-17
- Test basis
- ST/SG/AC.10/11/Rev.8, 38.3
- Laboratory
- Guangzhou Customs District Technology Center
UN 38.3 test report
EMA670385305098110076 (SL76144)
76.8 V · 144 Ah · 11.0592 kWh
Full-item UN 38.3 result for the identified SL76144 battery pack and its FC46120P component cells.
- Report
- RZUN012025-0989
- Issued
- 2025-08-12
- Test basis
- ST/SG/AC.10/11/Rev.8, Section 38.3
- Laboratory
- CVC Testing Technology Co., Ltd.
Safety type-test report
DZ48N-24ETBPYZ
48 V · 24 Ah · 1.152 kWh
Qualified safety type-test result for the single DZ48N-24ETBPYZ electric-bicycle battery model under GB 43854-2024.
- Report
- 00501-R2024-6924 / R2024CCC1121-125479
- Issued
- 2024-12-09
- Test basis
- GB 43854-2024
- Laboratory
- CVC Testing Technology Co., Ltd.
1.2 m packaging drop test
EMA330200174025028064 (DMBP6445)
64 V · 45 Ah · 2.88 kWh
The tested shipping package for one DMBP6445 pack passed five-orientation 1.2 m drop testing; this is packaging evidence, not a blanket battery certification.
- Report
- GJW2025-7074
- Issued
- 2025-11-28
- Test basis
- ST/SG/AC.10/1/Rev.23
- Laboratory
- CVC Testing Technology Co., Ltd.
Original PDF. Each report applies only to the samples and configuration identified in that report. Acceptance requirements vary by destination, carrier and application; confirm the required document set before ordering or shipping.
