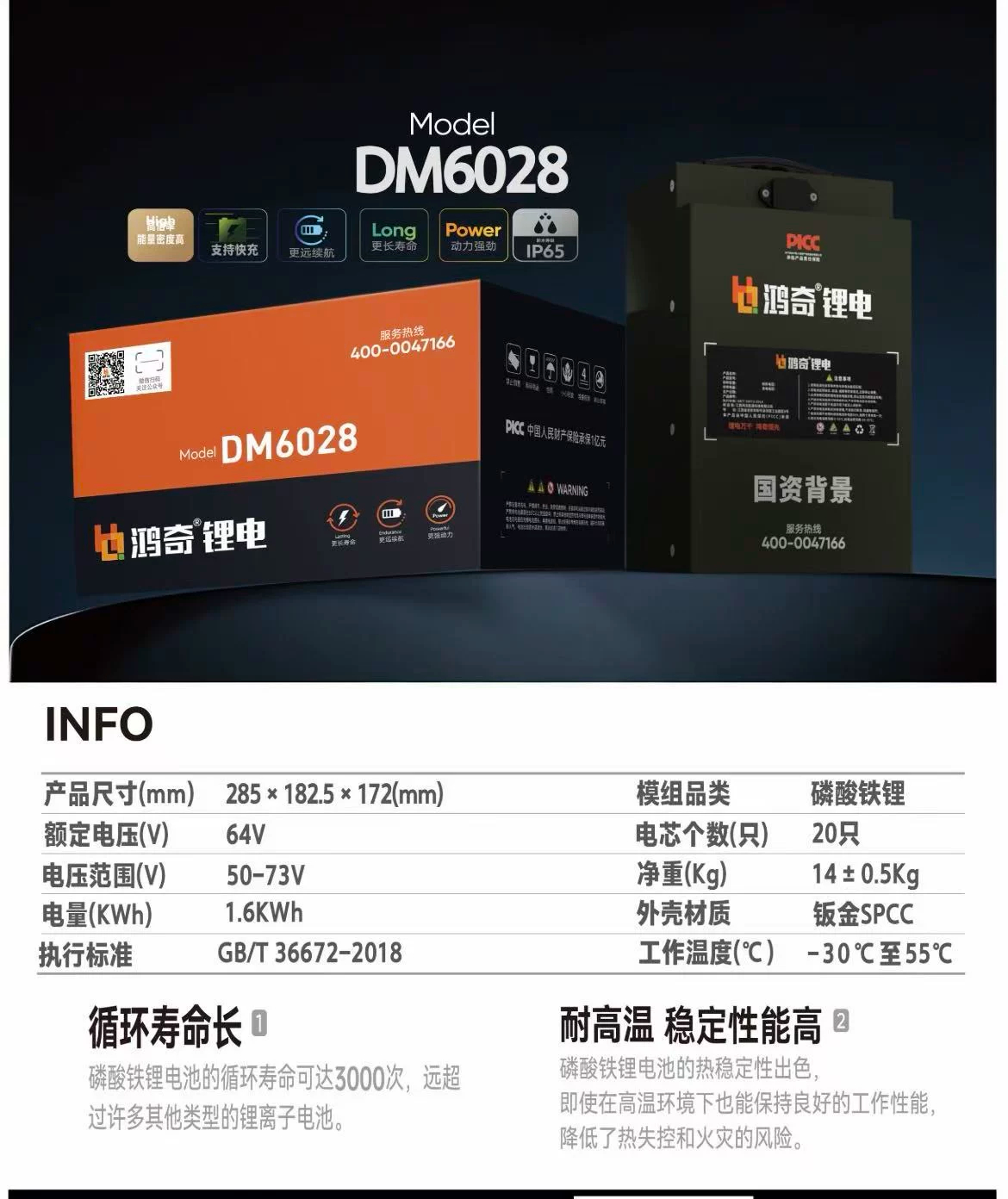

DM6028
60V 25Ah
- Nominal voltage
- 64 V
- Nominal energy
- 1.6 kWh
- Dimensions
- 285 × 182.5 × 172 mm
- Included charger
- 3A charger
LITHVOLT / LiFePO4 TWO-WHEELER BATTERIES
60V & 72V LiFePO4 Two-Wheeler Batteries
LiFePO4 packs for electric two- and three-wheelers, rebuilt from the supplied product file. Open any model to review its complete source specifications before requesting a quotation.
REQUEST MATCHING CHECK ↗
LiFePO4 two-wheeler batteries
6 configurations
A battery is compatible only when voltage window, dimensions, connector, polarity, discharge current, controller, charger and communication interface all match the vehicle. Final electrical interfaces must be confirmed before production.
IP65

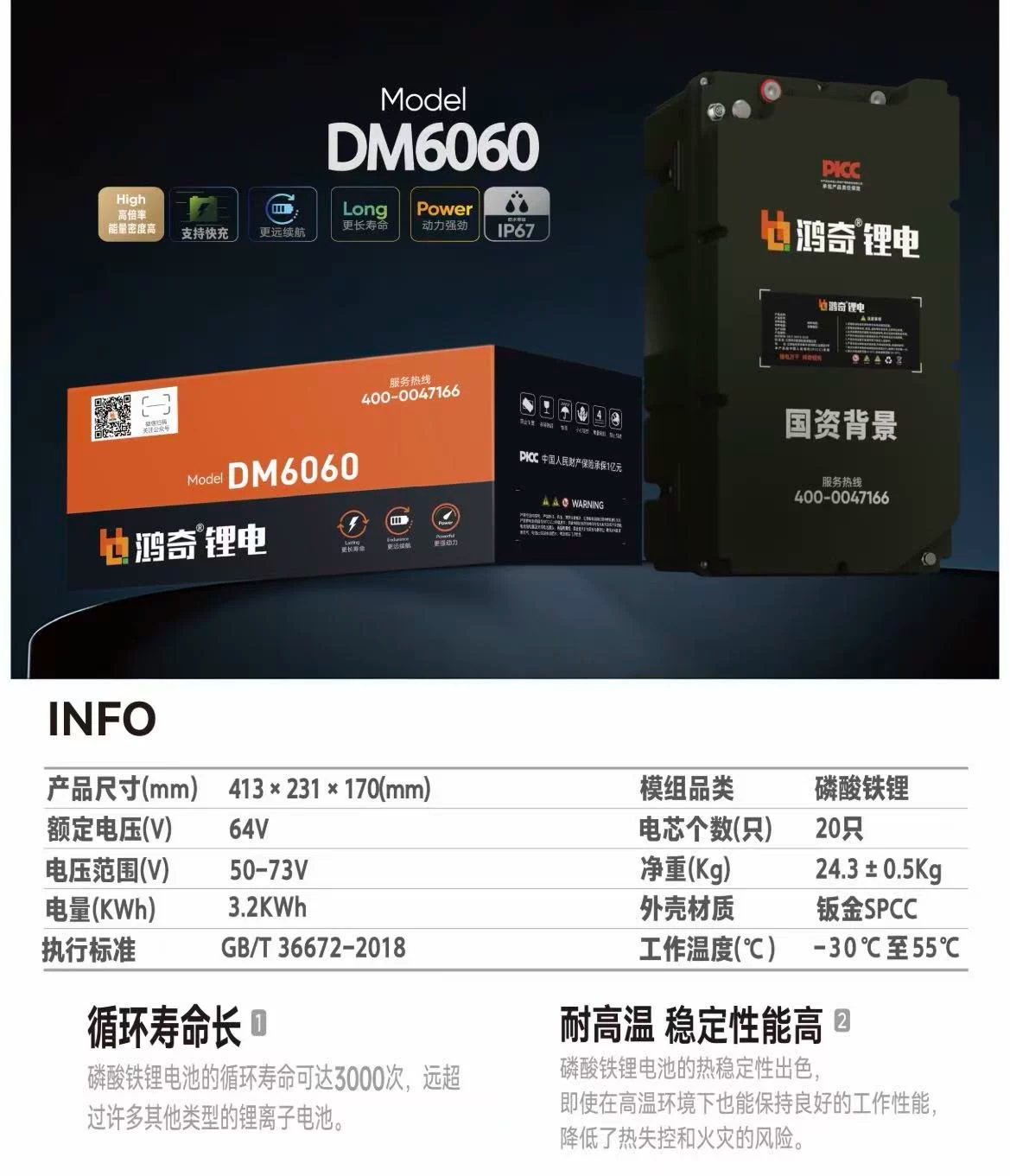

DM6060
60V 50Ah
- Nominal voltage
- 64 V
- Nominal energy
- 3.2 kWh
- Dimensions
- 413 × 231 × 170 mm
- Included charger
- 8A charger

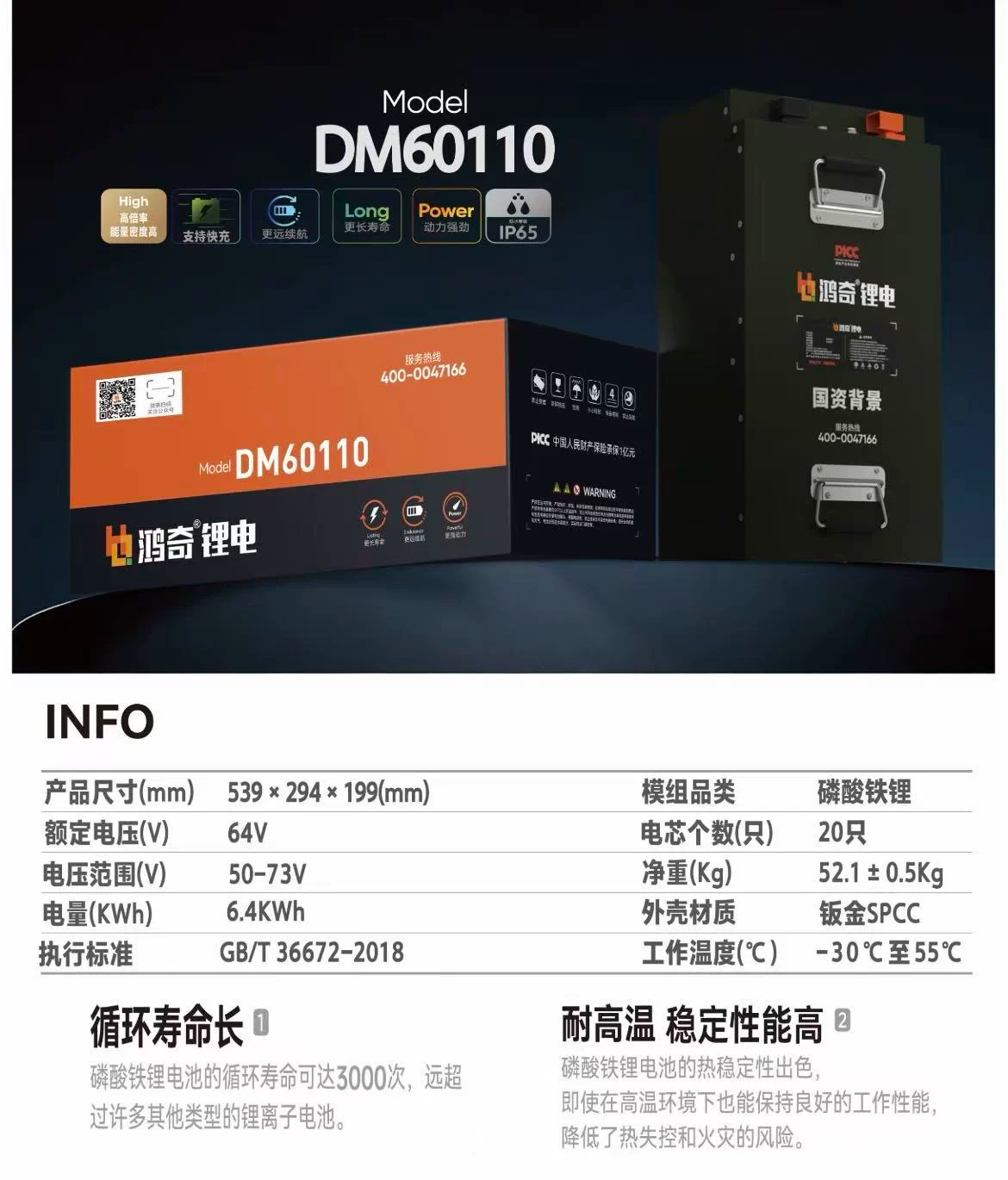

DM60110
60V 100Ah
- Nominal voltage
- 64 V
- Nominal energy
- 6.4 kWh
- Dimensions
- 539 × 294 × 199 mm
- Included charger
- 15A charger

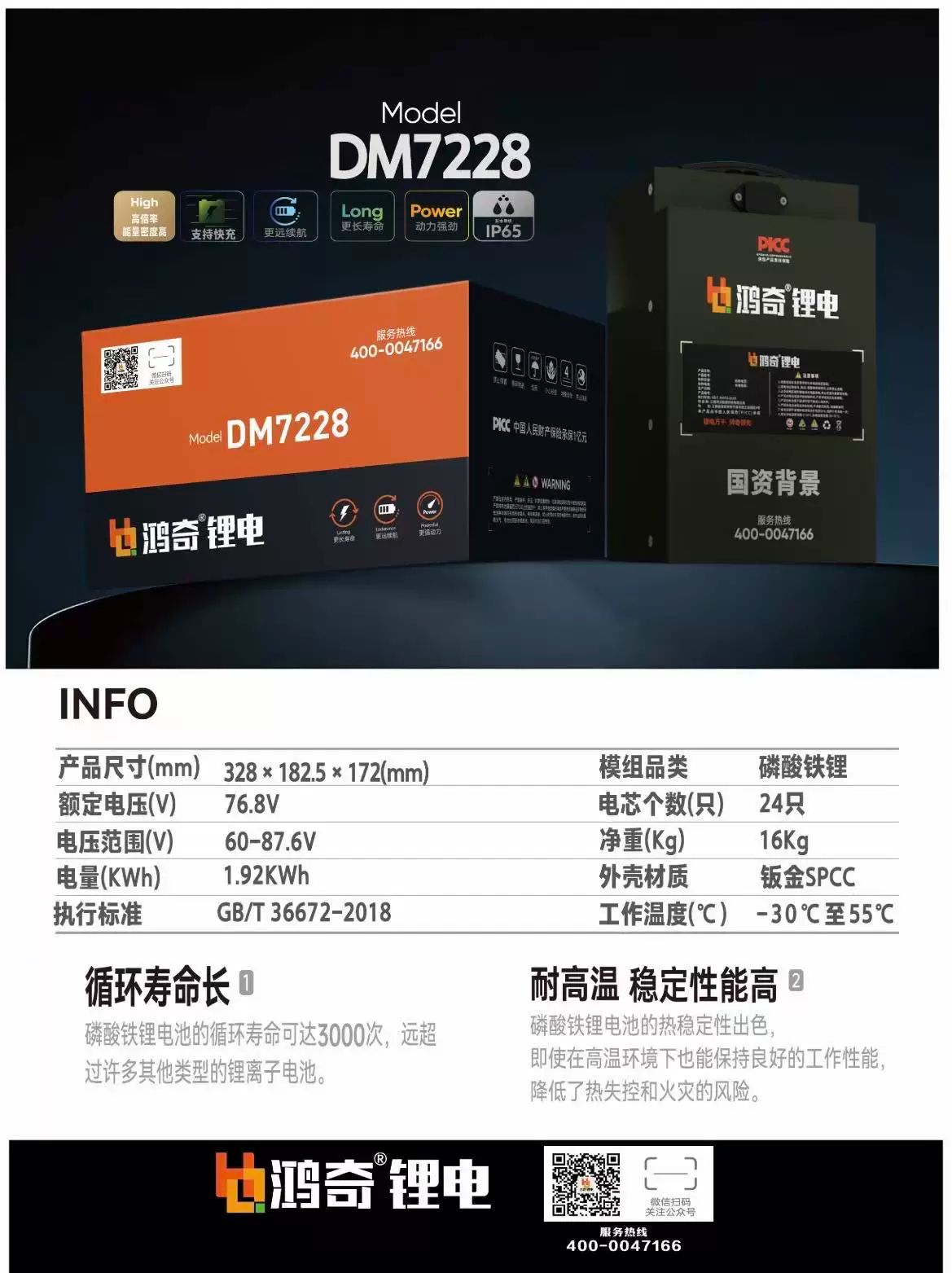

DM7228
72V 25Ah
- Nominal voltage
- 76.8 V
- Nominal energy
- 1.92 kWh
- Dimensions
- 328 × 182.5 × 172 mm
- Included charger
- 3A charger

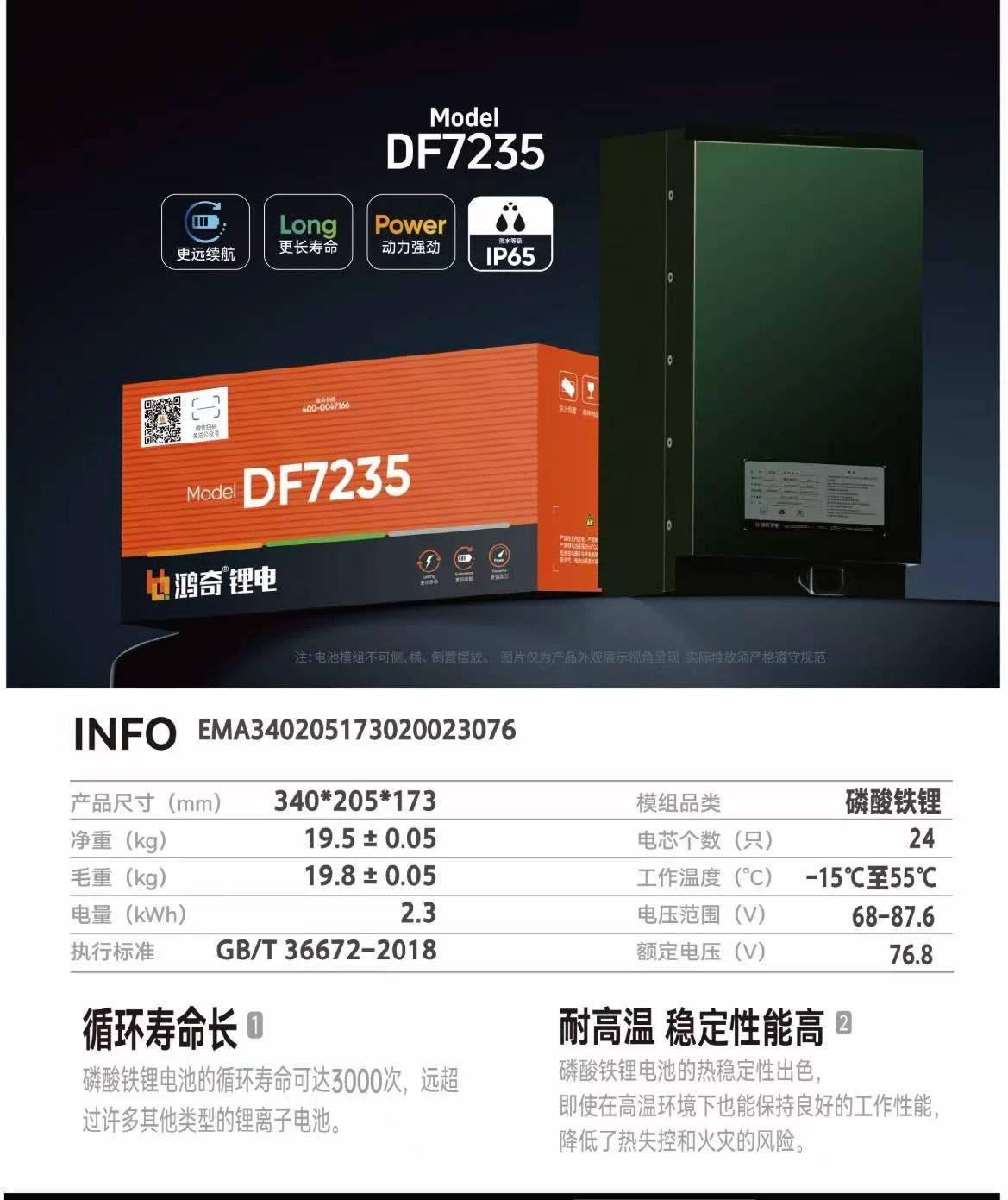

DF7235
72V 30Ah
- Nominal voltage
- 76.8 V
- Nominal energy
- 2.3 kWh
- Dimensions
- 340 × 205 × 173 mm
- Included charger
- 5A charger

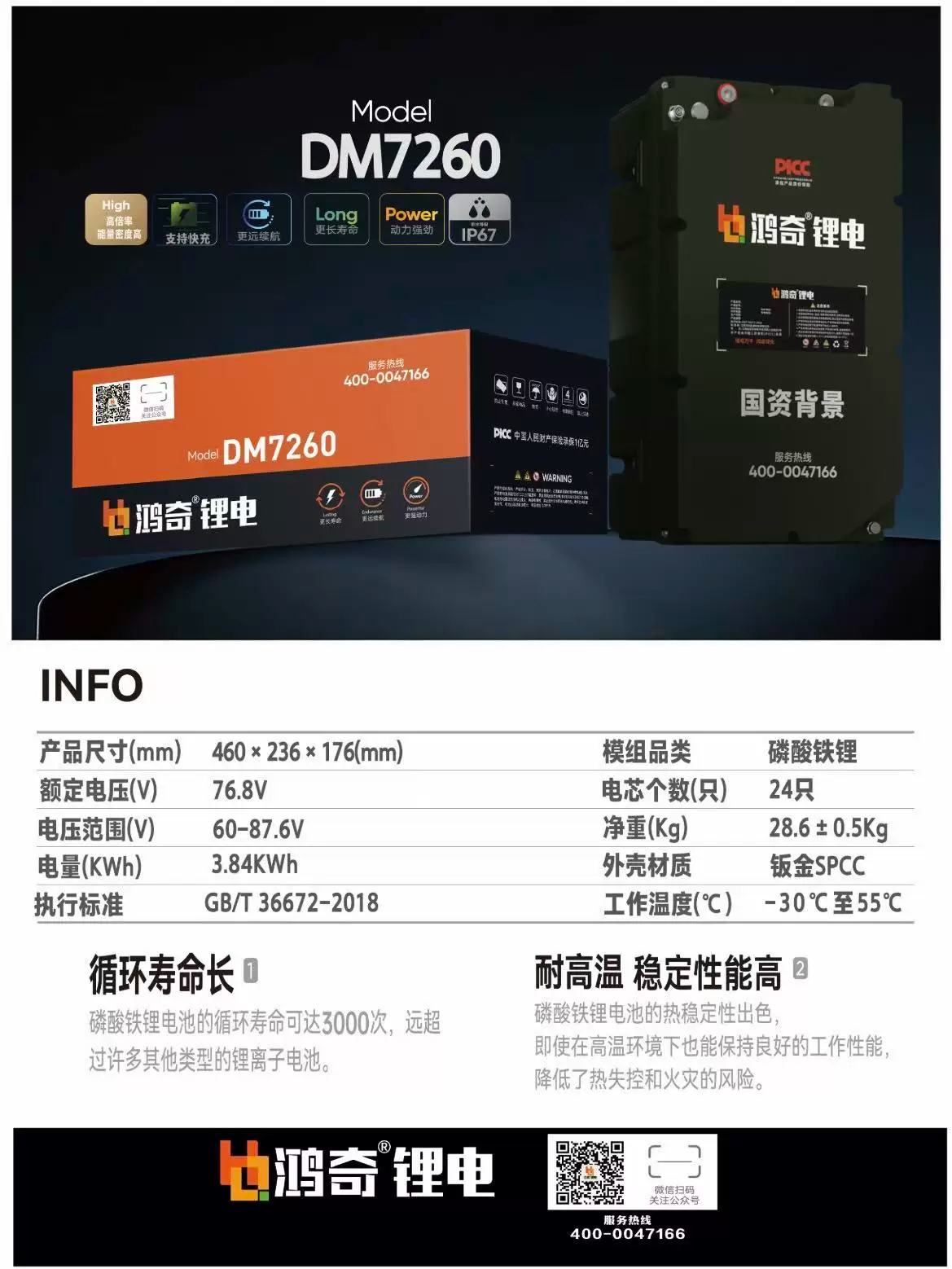

DM7260
72V 50Ah
- Nominal voltage
- 76.8 V
- Nominal energy
- 3.84 kWh
- Dimensions
- 460 × 236 × 176 mm
- Included charger
- 8A charger
01 / MATCHING
Match the complete vehicle system
- 1Confirm the vehicle platform and controller voltage window.
- 2Measure the battery bay and check the listed enclosure dimensions.
- 3Confirm connector, polarity, cable length and communication requirements.
- 4Verify continuous and peak discharge current before the final PI.
02 / PRODUCT
Product file highlights
- LiFePO4 chemistry and sheet-metal SPCC enclosure
- BMS protection and model-dependent smart functions
- IP65 or IP67 rating shown on the supplied SKU sheets
- A matched 3A, 5A, 8A or 15A charger is included
